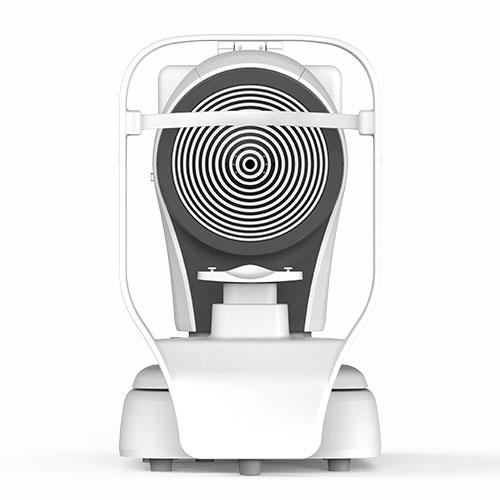

HRKT-1
Ref/Keratometer & Topography & Dry eye
All-in-one Vision Analysis Solution
- Product details will be available soon.
MENU
Explore Details
Product details will be available soon.
Specifications
1. Biometry
Parameter
Measuring range
SD of Repeatability
Distance between vertex of corneal (VD)
0.0, 12.0, 13.75, 15.0
-
Spherical prescription (SHP to SPH)
0.0 to ±20.00D (in case of VD=12mm)
(0.01/0.12/0.25D unit)
Astigmatism prescription (CYL)
0.00 to ±12.00D
(0.01/0.12/0.25D unit)
The accuracy is in accordance with ISO 10342.
Astigmatism axis angle (AX)
0˚ ~ 180˚ (1˚ unit)
Astigmatism indication
-, +, MIX
-
Pupil distance (PD)
10 ~ 85mm
-
Minimum pupil diameter that can be measured
Ø2.5mm
-
2. Corneal Topography
Working distance
80mm (Meibomian Gland: 100mm)
Placido disc
24 rings
Points Analyzed
Over 100,000
3. Keratometry
Parameter
Measuring range
측정범위
Corneal measurement range
Up to 9.8 mm
(R = 8.0 mm, 42.2 D, n=1.3375)
-
Corneal curvature radius
(Cornea refractive power)
5.00 to 13.00 mm
(26 to 67.5 Diopter, n = 1.3375)
The accuracy and repeatablility are in accordance with Type A, ISO 19980
Direction of principal meridians
0° to 180°
According to the ISO 10343:2014
White-to-white distance
7 to 14mm
± 0.05 mm
4. Dry eye
Dry Eye Function
Lipid Layer, Tear Meniscus Height, NIBUT, Meibomian Gland, Blink Analysis
5. Common
Horizontal Movement
55 mm (back and forth) / 100 mm (left and right)
Vertical Movement
30 mm
Chinrest Movement
62 mm (up and down), motorized
Measurement method
Semi Auto Tracking
Auto tracking
X, Z = ± 5mm / Y = ± 15mm
(X,Y for positioning, Z for working distance)
Power Supply
AC 100-240V, 50/60Hz, 1.0A - 0.5A
Dimension
312(W)mm x 567(D)mm x 550(H)mm
Weight
23 kg
** 사양 및 디자인은 예고 없이 변경될 수 있습니다.
